This article will cover everything you need to know about SH1.
Handheld Accessory Installation & Usage
Full Video Guide & Maintenance
Disk Brush Disassembly and Replacement

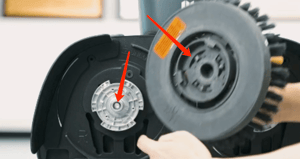

To attach the Disk Brushes, align the back of the Disk Brushes with the with the installation location on the machine base.
Once you have aligned the Disk Brush, press against the machine and twist the Disk Brush Outwards to snap it into place (In the image above, you would rotate the Disk Brush to the Left to lock it into place).
To remove the Disk Brushes, quickly twist Inwards, this will unlock the Disk Brush and you can remove it to do maintenance or replace it.
When deciding to replace the Disk Brushes, you will know it's time to replace them when the bristles reach the same size as the yellow bristles.
Filling The Solution Tank

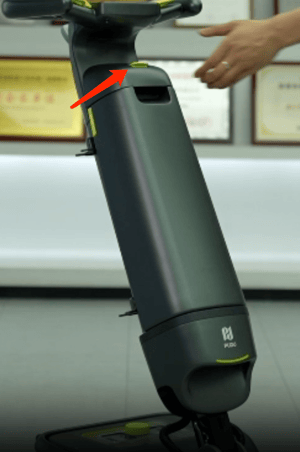

To fill the Solution Tank, grab the tank and press down on the green button to unlock it and pull off.

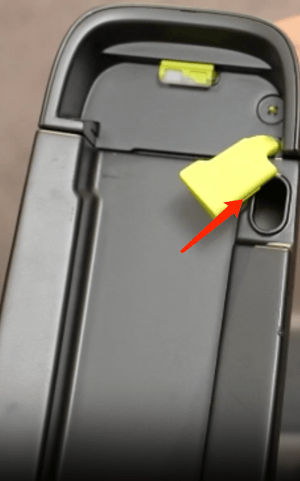

Once you have removed the Solution Tank from the machine, you can take off the green clip on the tank and fill it with water and detergent.
Do Not Add Water To This Hole In The Solution Tank.

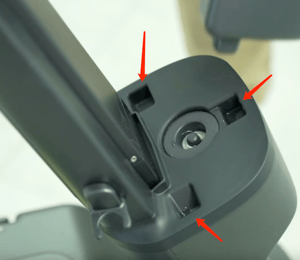

Once you have filled up the Solution Tank with water and detergent, close the hole with the green clip and ensure that the 3 locating pins are lined up with the corresponding holes in the base of the machine.
Squeegee Installation and Disassembly

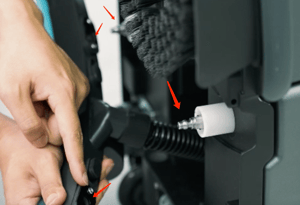

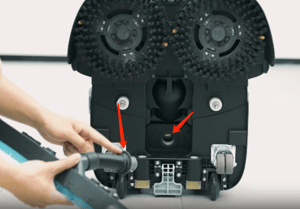

First, insert the vacuum hose into the chassis and tighten it by rotating it clockwise.
Next, lineup the chassis connection pins with the corresponding hole to lock the Squeegee in place.
To remove the Squeegee, simply pull and remove from the pins and turn the vacuum hose anti-clockwise and pull out.
Lifting The Squeegee

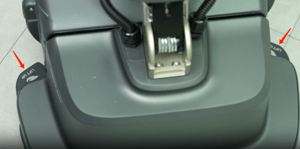

On the base of the machine, there are two tabs which are connected to the Squeegee.
To raise or lower the Squeegee, both actions will be pulling the two tabs upwards.
Posture Switch Ring Operation

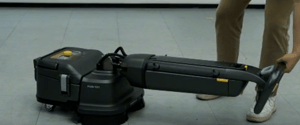

Firstly, lay the machine down slowly.

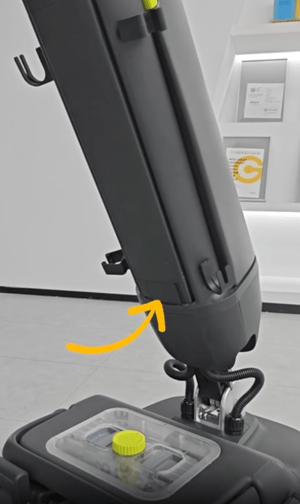

Once on the ground, pull the Posture Switch Ring (Gray Tab) once.

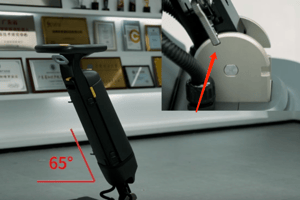

This will unlock the machine, allowing it to rotate around flexibly, once it is in the "Working Position", while in the Working Position, pull the Posture Switch Ring anytime and move the machine to a 65 degree angle and the latch will lock into place and turn it to the Parking Position.

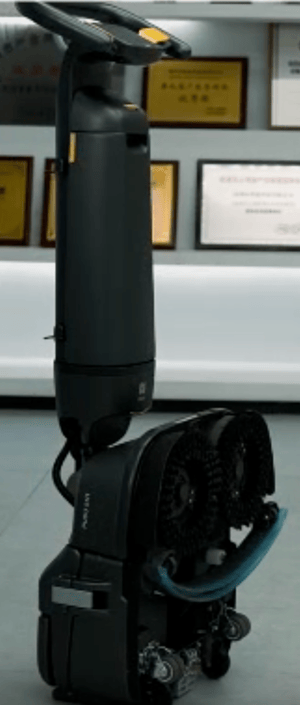

Pull the Posture Switch Ring again to release the machine, lay the machine flat slowly and pull the Posture Switch Ring anytime again and the hatch will lock in place when you lay it slowly down, this will then lock the machine into the Storing Position where you can stand it up for storage.
Power

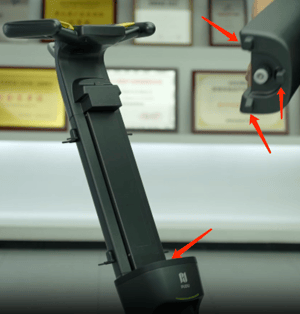

To charge the machine, locate the power plug on the back of the machine, behind the solution tank.
There is a small latch where you can open and see where the plug needs to connect to.
To remove the charging cable, squeeze the clip and pul out the cable.

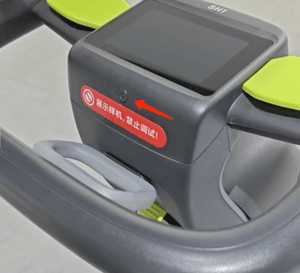

To turn on the machine, press this power button until the logo appears on the screen.

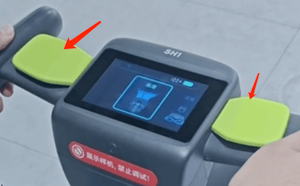

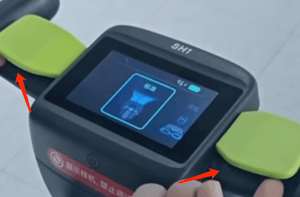

Once the machine is on, press both of the green tabs down together until you see the Disk Brushes moving on the screen.
Press the tabs down together again and keep moving the machine until the the count down is over to stop the machine.
Do Not Lift The Tabs Up.
Recovery Tank Cleaning

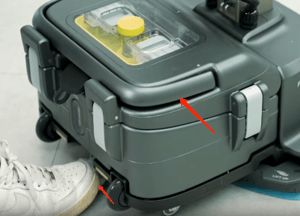

First, step on the pedal and lift the Recovery Tank up using the handle.

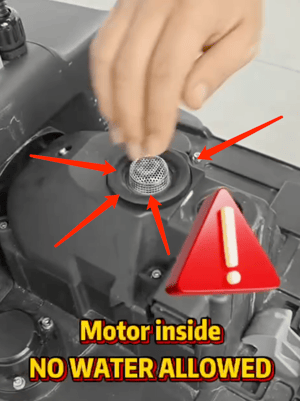

Do NOT Let Any Water Into This Motor, This Will Damage The Machine If Any Water Gets Into The Motor.
Once you have removed the Recovery Tank, take it over to a place where you can drain the dirty water.

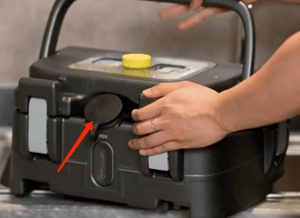

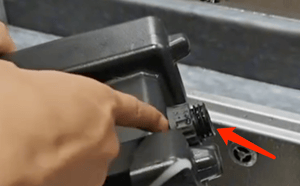

To drain the dirty water, remove the cap that is highlighted in the image and pour from there.
Once done, just reattach it back to the base of the machine and once secured, you will not be able to lift it back up.
Window and Surface Handheld Accessory Usage
This video will guide you through the installation, disassembly and usage of the Accessories.
Scrub Pad Installation and Maintenance.
This video will guide you through installing & disassembling the Scrub Pads.
SH1 General Video Guide & Maintenance
This video will guide you through the general usage of the machine and how to maintenance the machine and it's parts.
If you require further support, please feel free to contact us here.
